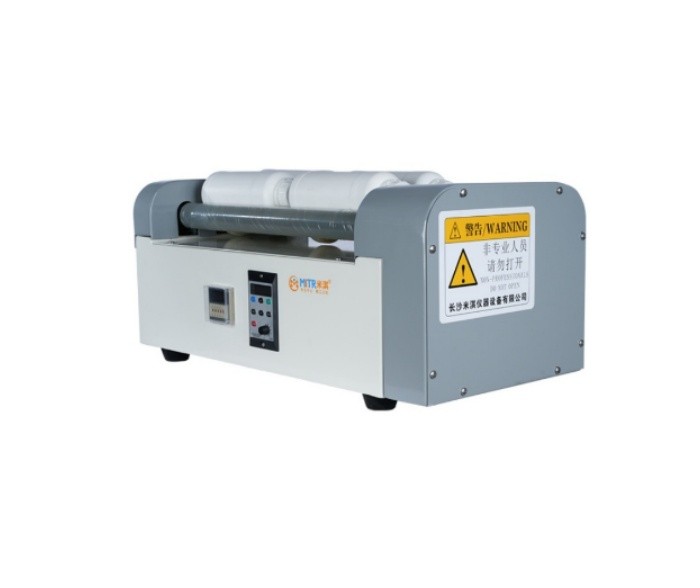

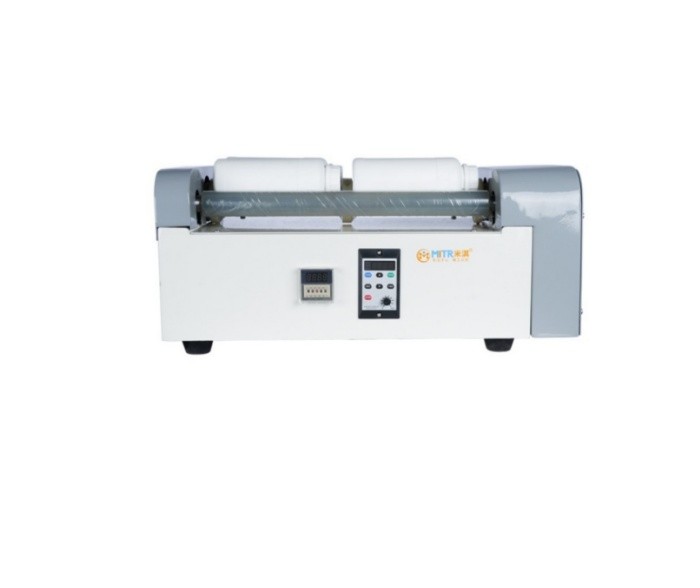

QS-4 Light Plastic Type Roller Jar Mill is a high-performance, bench-top laboratory instrument designed for the ultra-fine grinding, mixing, and homogenization of materials . Also known as a jar rolling mill or roll ball mill, this equipment is the ideal solution for R&D institutions, universities, and small-scale production facilities that require a reliable and easy-to-use milling machine. Its "light plastic type" design emphasizes a compact structure without compromising on durability or grinding efficiency, making it a preferred choice for processing a wide variety of materials from ceramic glazes to battery components
QS-4 Roller Jar Mill is widely used across various industries for sample preparation and small-batch production:
Ceramic Industry: Grinding and mixing of ceramic glazes, porcelain enamels, and clay bodies .
Battery Research: Homogenizing and grinding cathode (e.g., LiFePO₄, LiCoO₂) and anode materials for lithium-ion batteries .
Materials Science: Preparing electronic materials, magnetic materials, and metal powders .
Construction Materials: Processing cement, slag, and new building materials for quality control .
Chemical & Pharmaceutical: Mixing and fine-grinding of chemical reagents, pigments, and pharmaceutical ingredients .
| Model | QS-4 |
| Jar Capacity | 250 ml - 500 ml (per jar) |
| Roller Size | Φ38 × 422 mm |
| Throughput | 1-4 KG/hour |
| Feed Size | < 3 mm |
| Final Fineness | 200-300 mesh (~75µm - 50µm) |
| Rotational Speed | 90-900 r/min (Variable Frequency Control) |
| Motor Power | 0.25 kW |
| Power Supply | 220V, 50/60Hz (Customizable) |
| Transmission | Synchronous Belt |
| Key Feature | Adjustable Roller Spacing via handwheel |
Relevant product parameters
| Model | Jar Size | Roller Length | Power | Voltage | Layers/Station | Transmission Mode |
| QS-4 | 55mm-80mm | Φ38*422 | 0.25（kw) | 220V 50Hz | 1/4 Stations | Belt |
| QS-16-A | 80mm-130mm | Φ58*670 | 1.1（kw) | 220V 50Hz | 2/16 Stations | Belt |
| QS-16-B | 55mm-90mm | Φ58*670 | 1.1（kw) | 220V 50Hz | 2/16 Stations | Belt |
