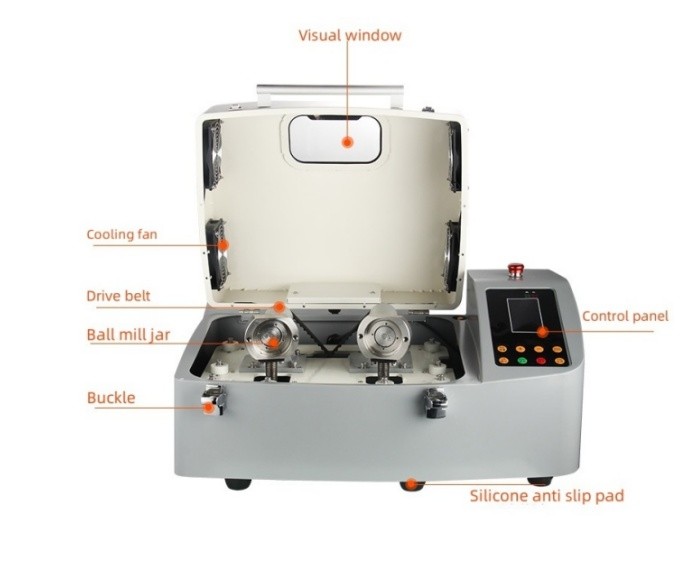

MT-SQM-2 3D Vibrating Ball Mill is a state-of-the-art, high-energy laboratory mill designed for rapid and ultrafine grinding of materials. Utilizing a unique three-dimensional swing mechanism, this mill generates intense impact, friction, and shear forces, enabling it to grind samples down to the nanometer range quickly and efficiently. It is the ideal solution for research institutions and quality control departments focused on materials science, nanotechnology, battery materials, and more.
MT-SQM-2 is widely used in various fields:
Materials Science: Preparation of nanomaterials, ceramics, metal powders, and composite materials.
Battery Research: Grinding of lithium battery cathode/anode materials (e.g., LiFePO4, LiCoO2).
Geology & Metallurgy: Sample grinding for XRF and other analytical methods for minerals, ores, and soils.
Chemical & Pharmaceutical: Catalyst preparation, drug development, and pigment dispersion.
Mechanical Alloying: Solid-state alloying of metals and non-metals.
| Model | MT-SQM-2 |
| Vibration Frequency | 0 - 1000 r/min (adjustable) |
| Max Feed Size | ≤1 mm |
| Final Fineness | ~0.1 µm (for some materials) |
| Batch Capacity | ≤2 x 20 ml |
| Max Grinding Volume per Jar | ≤2 x 50-80 ml |
| Grinding Jar Materials Available | Stainless Steel, Tungsten Carbide, Agate, Zirconia, PTFE, Nylon, Polyurethane |
| Motor Power | 120W / 24V DC Motor |
| Power Supply | 220V, 50-60 Hz |
| Typical Grinding Time | Within 30 minutes |
