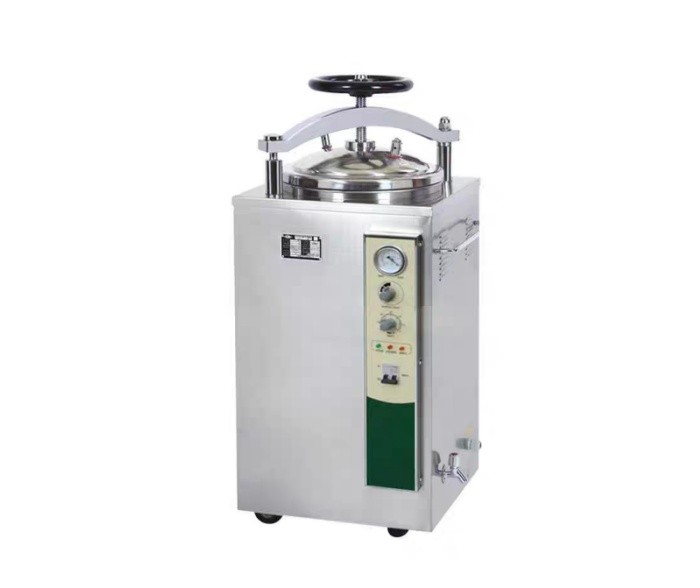

Heated Vertical Steam Sterilizer designed to meet the rigorous demands of hospitals, clinical laboratories, dental clinics, research institutes, and disease control centers. Utilizing pressure-saturated steam, this vertical autoclave delivers fast, reliable, and thorough sterilization of medical instruments, surgical dressings, glassware, culture media, liquids, and biohazardous waste.
Medical: Sterilizing surgical instruments, dental tools, drapes, and dressings.
Laboratory: Treating culture media, glassware, pipettes, and biohazardous waste before disposal.
Pharmaceutical & Research: Ensuring sterile conditions for materials and equipment.
| Modeltechnical data | LS-35HJ | LS-50HJ | LS-75HJ | LS-100HJ |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
| working pressure | 0.22MPa | 0.22MPa | ||
| Working temperature | 134℃ | 134℃ | ||
| Max working pressure | 0.23 Mpa | 0.23MPa | ||
| Heat average | ≤±1℃ | |||
| Timer | 0～60min | |||
| Adjustment of temperature | 105～134℃ | 105～134℃ | ||
| Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
| Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120(mm) | 540×560×1250(mm) |
| Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
| G.W/N.W | 72Kg/ 56Kg | 88Kg/ 68Kg | 100Kg/80Kg | 110 Kg/85Kg |
