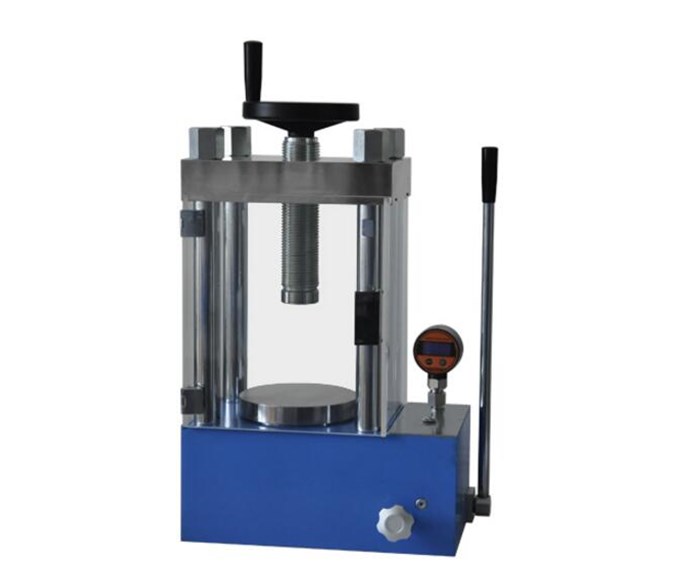

CHY-60T Compact Hydraulic Press with O.D160mm Pressing Plate

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name60T Hydraulic Pellet Press
TypeCHY-60F
Pressure range0-60T(0-34MPa)
Piston diameterChrome plated cylinder 150mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Maximum piston stroke50mm(T)
Pressure stability≤1MPA/10Min
Worktable diameter160mm(O.D)
Number of columnsFour Column
Column spacing185*250mm
Protective CoverPlexi glass
Over dimension405*240*565mm
Weight120Kg

Pressure Conversion


Real PressureSystem PressurePressure Gauge
1Ton0.56MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
3Ton1.7MPa
5Ton2.8MPa
10Ton5.6MPa
20Ton11.3MPa
30Ton17MPa
40Ton22.6MPa
50Ton28.3MPa
60Ton34MPa
