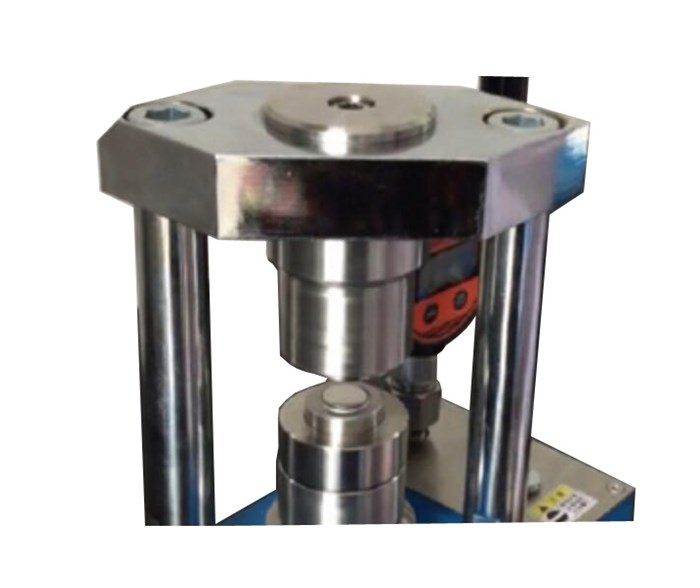

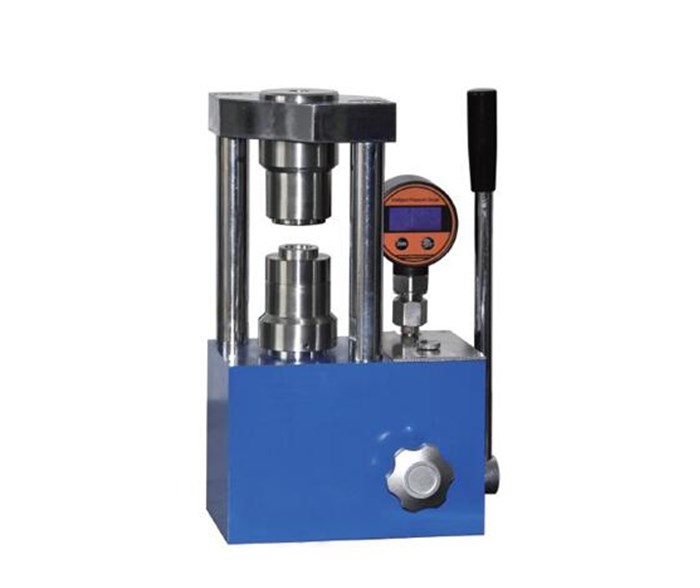

CHY-5NS Laboratory Hydraulic Crimper for All Types of Coin Cells

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

  5. CR serial Coin Cell Crimping

Product parameters


Product Name5T Laboratory Hydraulic Crimper
TypeCHY-5NS
Pressure range0-5T(0-31MPa)
Piston diameterChrome plated cylinder 45mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugeDigital Gauge 0.00-40.00MPa
Standard MoldCR20
Sealing moldCR16,CR20,CR24,CR30
Sealing pressure0.8~1.2T
Crimping moldCR16,CR20,CR24,CR30
Crimping pressure<0.4T
Over dimension225*155*320mm
Weight28kg

Pressure Conversion


Real PressureSystem PressurePressure Gauge
0.2Ton1.25MPa CHY-5NS Laboratory Hydraulic Crimper for All Types of Coin Cells
0.4Ton2.51MPa
0.6Ton3.77MPa
0.8Ton5.03MPa
1Ton6.28MPa
2Ton12.5MPa
3Ton18.8MPa
4Ton25.1MPa
5Ton31.4MPa
