300℃ Infrared Quantitative Heating Flat Plate Press Mold is a high-performance heated die designed for use with standard hydraulic presses to prepare flat, uniform pellet samples up to 25mm in diameter. The mold utilizes advanced infrared heating technology to deliver precise, efficient heating directly to the sample area, ensuring rapid temperature rise and uniform heat distribution.
300℃ Infrared Heating Flat Plate Press Mold is widely used for sample preparation in analytical and materials laboratories:
FTIR Spectroscopy: Preparing flat, uniform KBr or other alkali halide pellets for Fourier Transform Infrared transmission analysis. The 50mm diameter accommodates larger samples than standard 13mm dies, broadening the range of analyzable materials.-11
XRF Spectroscopy: Creating flat pressed pellets for X-ray Fluorescence analysis, where larger sample diameters are often required for accurate elemental quantification.
Polymer & Thin Film Preparation: Hot pressing of thermoplastic films and sheets for mechanical testing, thermal analysis, and optical inspection.
Pharmaceutical Analysis: Preparation of flat sample discs for dissolution testing, content uniformity analysis, and quality control of solid dosage forms.
Geology & Mineralogy: Pressing mineral powders and geological samples into flat pellets for compositional analysis.
Academic & Industrial R&D: Routine sample preparation for materials characterization in university, government, and corporate research laboratories.
| Model No. | PCH-600B |
| Die material | Alloy Steel 440C |
| Temperature Range | Rt~300℃; 400℃ for option |
| Sample Diamter | <Φ25mm |
| Sample Thickness | 15, 25, 50, 100, 250, 500μm total six quantitative ring |

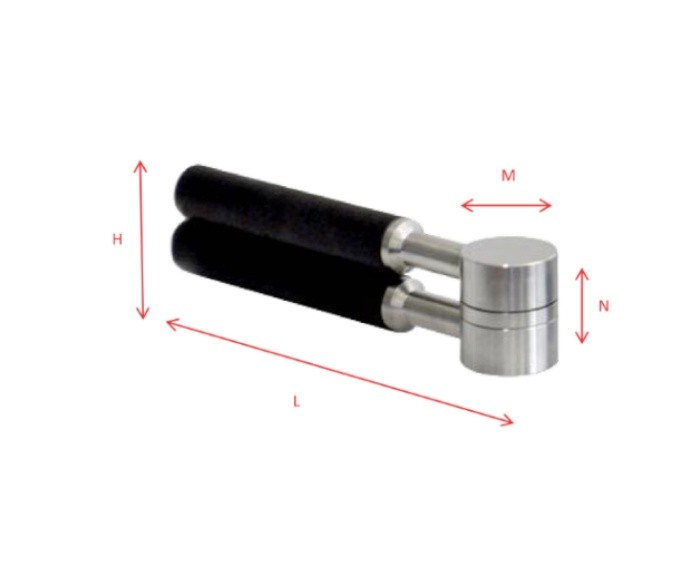

| Dimension | 200*60mm (L*H) |
