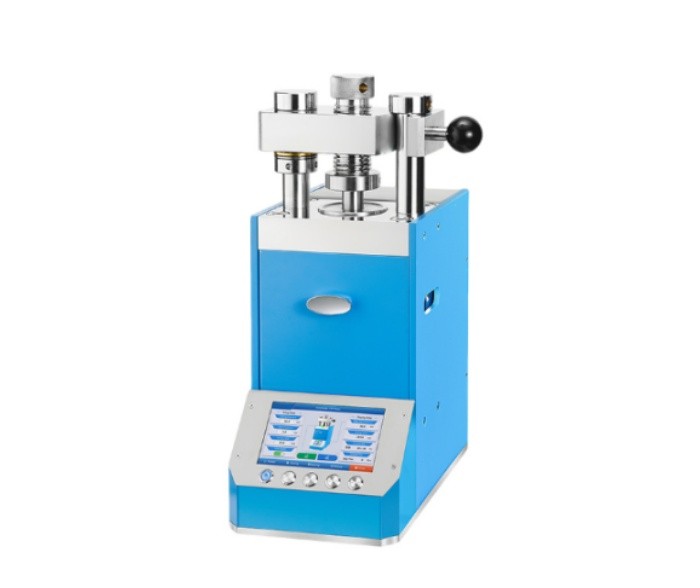

Fully automatic isostatic Hot press designed for high-precision laboratory sample preparation. By utilizing liquid medium to achieve three-dimensional isotropic pressing, this machine delivers over 95% pressure uniformity, making it ideal for applications requiring high density consistency. It is particularly suitable for pressing long cylindrical samples and secondary forming processes, resulting in denser and more uniform sample structures.
Automatic Hot Isostatic Press is widely used in:
Scientific Research – Material science research and laboratory teaching in universities and institutes
Pharmaceutical & Chemical – Powder compaction for drug powders, catalysts, and chemical materials
Battery Energy – Electrode pressing for lithium battery cathode/anode materials; optimizes electrode density and structural integrity
Ceramic Materials – Isostatic forming of ceramic powders
Powder Metallurgy – Metal powder compaction
Electronics Industry – Powder material forming for electronic components
XRF Analysis – Sample preparation for X-ray fluorescence spectrometry
FTIR Analysis – Sample preparation for Fourier transform infrared spectroscopy
Advanced Materials R&D – Sample preparation for superconducting materials, building materials, cement, and new material development
| Model No. | PP-20R | PP-40R | PP-40R |
| Pressing range | 0~20T | 0~40T | 0~60T |
| Piston diameter | Φ130mm | Φ150mm | Φ200mm |
| Pressure Control | Programmable control pressing-holding-relief | ||
| Max heating temperature | RT~200℃ | ||
| Isostatic pressure | 300MPa | ||
| Vessel Size | Φ30*150mm | Φ40*150mm | Φ50*150mm |

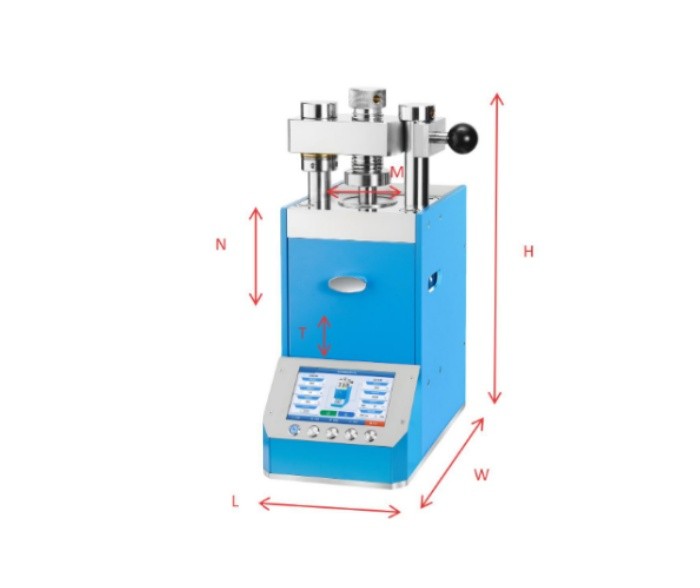

| Dimension | 280*460*660 | 300*500*680mm | 330*580*720mm |
| Power Supply | AC220V/50Hz,1800W | AC220V/50Hz,1800W | AC220V/50Hz,3000W |
