Automatic Cold Isostatic Press CIP Machine engineered for demanding laboratory powder compaction applications requiring high pressing forces. By combining isostatic pressing technology with an electric drive system, this press applies uniform pressure from all directions to the sample while eliminating manual pumping effort. The motorized operation with automatic pressure holding delivers repeatable, hands‑free pressing cycles for large‑volume sample preparation, advanced ceramics, powder metallurgy, and high‑density material development. Built with a heavy‑duty frame and industrial‑grade components, the press bridges the gap between benchtop lab presses and production‑scale equipment.
Electric Isostatic Tablet Press is ideal for high‑force powder compaction across demanding research and small‑scale production environments:
Advanced Ceramics – Forming of ceramic green bodies for structural ceramics, cutting tools, wear parts, and electronic substrates
Powder Metallurgy – Compaction of metal powders (stainless steel, titanium, tungsten, copper alloys) for sintered components and MIM feedstock
Battery & Energy Storage – High‑density electrode pressing for solid‑state batteries, supercapacitors, and fuel cell components
Refractory Materials – Specimen preparation for high‑temperature materials testing
Pharmaceutical & Chemical – Large‑scale catalyst tablet forming, pharmaceutical compaction for pilot studies
Aerospace & Defense – Prototype forming of specialized alloys and composite powders
Diamond & Superhard Materials – Synthetic diamond powder pressing, polycrystalline diamond compact (PDC) pre-forming
Academic & Industrial R&D – Materials science research requiring high uniaxial or isostatic pressures
| Model | PP-60J |
| Pressure range | 0-60 Ton |
| Piston diameter | 150mm(d) |
| Max. piston stroke | 50mm(T) |
| Pressurization process | 20-stage programmed pressurization with pressure profile display. |
| Pressure holding time | Each stage can be up to 32768 seconds or run indefinitely without timing. |
| Pressure conversion | Automatically calculate the pressure exerted on the sample base on its shape and size. |
| Pressure display accuracy | 0.01 Ton |
| Operation panel | 7 inches (IPS high-definition) touch screen panel |
| Metal buttons | Silver-plated contacts with a service life of ＞100,000 cycles |
| Equipment protection | The upper cantilever structure is more convenient to operate. |
| Pressure safety | The device is equipped with automatic pressure overload protection |
| Limit switch | The hydraulic cylinder automatically relieves pressure when it reaches the limit height. |
| Max. Pressure | 300 Mpa |
| Pressure Vessel | Φ50×150mm |
| Voltage | 220V or 110V (500W) |

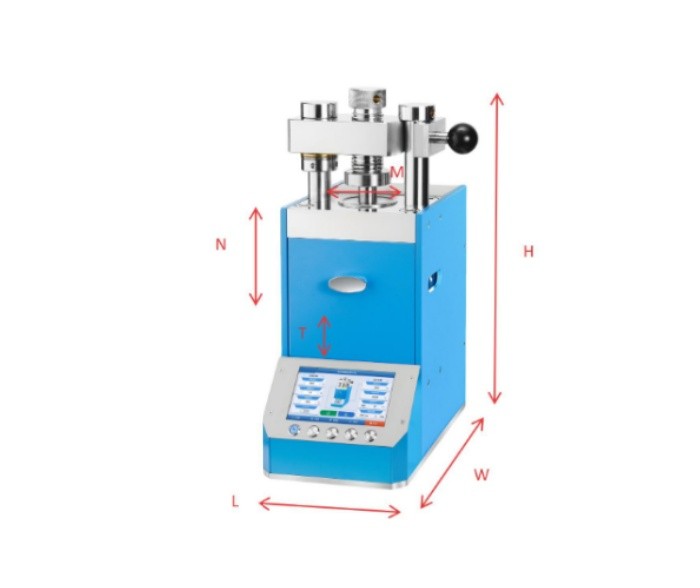

| Dimension (L×W×H) | 300×500×680mm |
| Net weight | 240kg |
| Packing information | 725×620×890mm/ 276kg |
