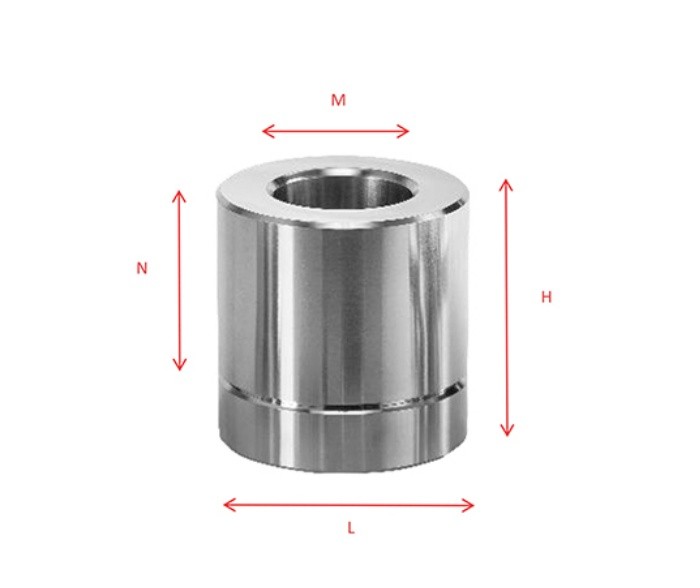

PMP Fluorescence Boric Acid Mold is a professional laboratory tool designed for X-ray fluorescence spectrometer sample preparation. Using boric acid powder to wrap the sample material, the mold compresses the powder into a uniform, flat, and dense pellet, enabling accurate and reproducible XRF analysis results.
| Product Name | PMP Fluorescence Boric Acid Mold |
| Application | XRF sample preparation / pellet pressing |
| Mold Material | Cr12MoV alloy tool steel |
| Indenter Hardness | HRC60-62 |
| Sample Size (Pellet Diameter) | Φ32mm / Φ40mm |
| Outer Diameter Options | Φ40mm (for Φ32mm sample) / Φ32mm (for Φ24mm sample) |
| Cavity Depth | 45mm |
| Pellet Thickness | 5-8mm |
| Mold Outer Dimensions | Approximately Φ73×133mm |
| Mold Weight | Approximately 3.2kg |
| Boric Acid Wrapping Thickness | 8mm |
