PMS-F Square Top and Bottom Sides Pressing Die is a cylindrical pellet die set specifically engineered to prevent sample cracking during high-pressure powder compaction in laboratory hydraulic presses. Made from Cr12MoV alloy tool steel with an indenter hardness of HRC60-62, this die set is designed for applications where standard die sets fail due to excessive pressure or deep cavity conditions. Whether you are pressing ceramic powders, metal alloys, battery materials, or pharmaceutical compounds
Materials science – Studying ceramics, polymers, composites, and other solid materials.
Battery material research – Pelletizing electrode materials for performance testing.
Geological and mining samples – Pressing rock powders or soils for mineral analysis.
Chemical industry – Testing catalysts, pigments, and other fine chemicals.
Food and agriculture – Sample preparation for nutritional or contamination analysis.
Academic laboratories – Teaching and experimental sample preparation.
| Model | PMS-F |

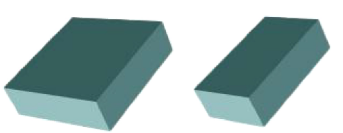

| Sample shape |   |
| Die material | Alloy tool steel: Cr12MoV |
| Indenter hardness | HRC60-HRC62 |
| Sample size | Length:5mm*5mm-40mm*40mm |
| Cavity depth | 30mm-40mm(N) |

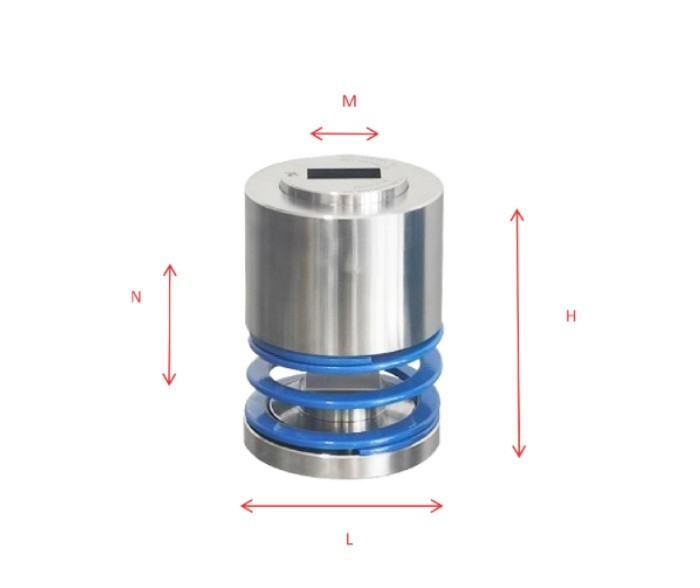

| Dimensions | Φ43mm*88mm×175mm(L×H) |
| Weight | 5Kg |
