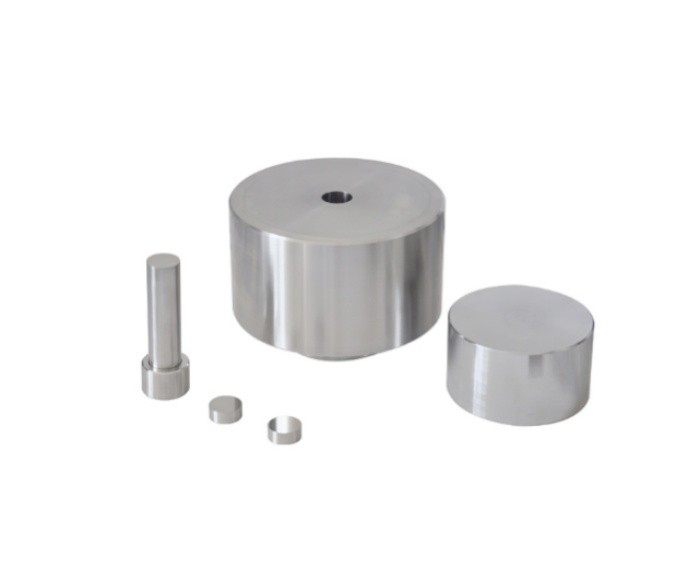

PML Anti Cracking Pressing Die Set

ML Anti-Cracking Pressing Die is a cylindrical pellet die set specifically engineered to prevent sample cracking during high-pressure powder compaction in laboratory hydraulic presses. Made from Cr12MoV alloy tool steel with an indenter hardness of HRC60-62, this die set is designed for applications where standard die sets fail due to excessive pressure or deep cavity conditions. Whether you are pressing ceramic powders, metal alloys, battery materials, or pharmaceutical compounds, the PML anti-cracking die ensures uniform pellet integrity and reliable results.

Inquire Now Next Product

Application

Materials science – Studying ceramics, polymers, composites, and other solid materials.

Battery material research – Pelletizing electrode materials for performance testing.

Geological and mining samples – Pressing rock powders or soils for mineral analysis.

Chemical industry – Testing catalysts, pigments, and other fine chemicals.

Food and agriculture – Sample preparation for nutritional or contamination analysis.

Academic laboratories – Teaching and experimental sample preparation.

Product parameters

Model	PML
Die material	Alloy tool steel: Cr12MoV
Indenter hardness	HRC60-HRC62
Sample size	Φ6mm/Φ8mm/Φ10mm/Φ15mm/Φ20mm(M)
Cavity depth	40mm(N)

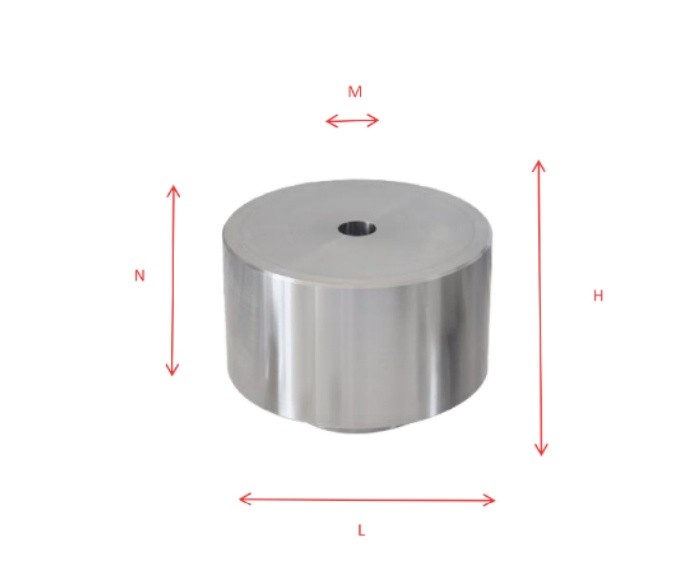

Dimensions	Φ98×120mm(L×H)
Weight	5Kg
