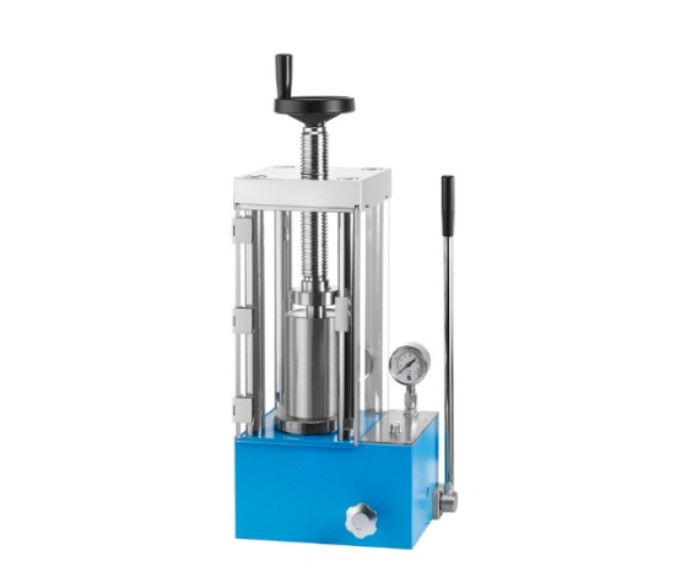

PC-60J Manual Isostatic Tablet Press is a compact yet powerful laboratory hydraulic press designed for cold isostatic pressing applications. This 60-ton manual press delivers uniform pressure distribution in all directions, making it an ideal solution for researchers and laboratory professionals who require high-density sample compaction with exceptional uniformity. The PC-60J combines robust construction with user-friendly operation, offering reliable performance for a wide range of sample preparation tasks.
Compound ceramic samples in materials/chemistry research laboratory
Catalytic Reaction
Battery Energy
Cement Ore

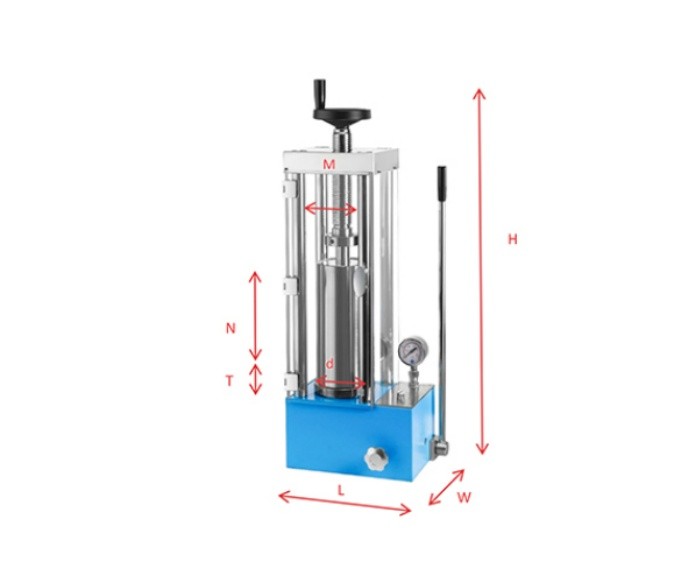

| Model | PC-60J |
| Pressure range | 0-60 Ton |
| Piston diameter | 150mm(d) |
| Max. piston stroke | 50mm(T) |
| Protective door | Plexiglass |
| Ambient temperature | 10℃-40℃ |
| Isostatic pressureIsostatic vessel (M×N) | 0-300MPaΦ50×150mm |
| 0-500MPaΦ35×150mm | |
| Voltage | 220V 50HZ/60HZ or 110V 60HZ |
| Dimension (L×W×H) | 405×240×720mm |
| Net weight | 180KG |
| Packing information | 725×620×890mm/ 216kg |
