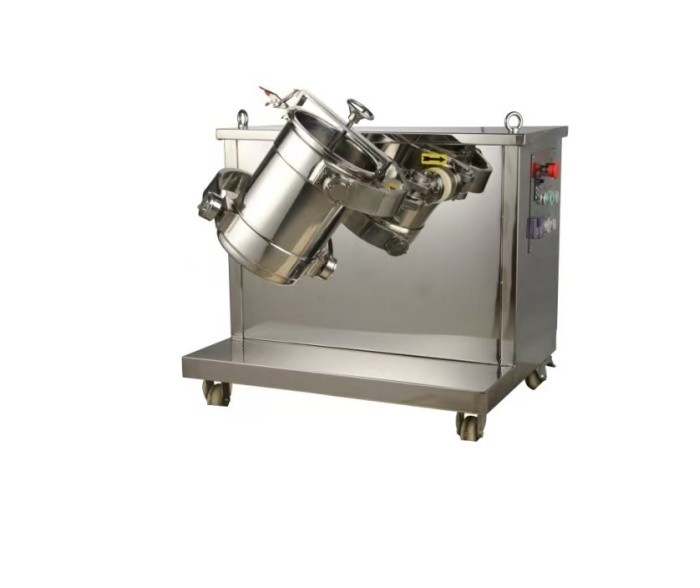

Three-Dimensional Mixer is a high-performance blending solution designed for achieving exceptionally uniform mixing of powders, granules, and solid-liquid materials. Through complex multi-directional motion in X, Y, and Z axes, the mixer eliminates gravity segregation, stratification, and accumulation caused by centrifugal forces, ensuring rapid and even blending of materials with varying densities and particle sizes.
This mixer is widely used in pharmaceutical, chemical, food processing, light industry, electronics, metallurgy, defense, and various R&D institutions. Available in a range of capacities from laboratory-scale to industrial production, theThree-Dimensional Mixer offers flexibility and reliability for diverse mixing requirements.
| Model | Capacity(L) | Useful capacity | Load weight limit | RPM of main shaft（r/min） | Power (kw) | Voltage(v/hz) | Weight(kg) |
| S-5L | 5 | ≦70% | Within 20kg | 13 | 0.75 | 220/50 | 120 |
| S-10L | 10 | Within 20kg | 0.75 | 220/50 | 130 | ||
| S-20L | 20 | Within 20kg | 0.75 | 220/50 | 145 | ||
| S-50L | 50 | Within 25kg | 1.1 | 380/50 | 300 | ||
| S-100L | 100 | Within 40kg | 1.5 | 380/50 | 500 | ||
| S-200L | 200 | Within 80kg | 2.2 | 380/50 | 800 | ||
| S-400L | 400 | Within 160kg | 4 | 380/50 | 1200 | ||
| S-600L | 600 | Within 240kg | 5.5 | 380/50 | 1500 | ||
| S-800L | 800 | Within 320kg | 7.5 | 380/50 | 2000 | ||
| S-1000L | 1000 | Within 400kg | 7.5 | 380/50 | 2500 |
