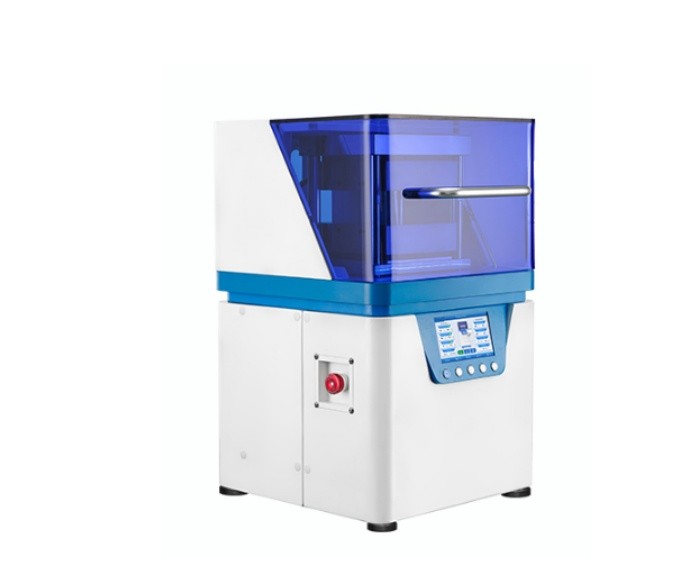

PP-600G-F High temperature laboratory heated hydraulic press is a state-of-the-art hot pressing solution designed for advanced material research, polymer processing, pharmaceutical development, and sample preparation. Featuring a 7-inch intuitive touch screen, this programmable hot press allows precise control over pressure, temperature, and cooling cycles. Available in three temperature configurations (300℃, 500℃, the PP-600G-F The max pressure is 60T , The heating plate is 500mm*500mm. It delivers exceptional versatility for a wide range of thermal processing applications. With dual safety protection, high-accuracy pressure control, and data export capabilities, this heated lab press sets a new standard for performance and reliability.
Compound ceramic samples in materials/chemistry research laboratory
Catalytic Reaction
Battery Energy
Cement Ore
| Model | PP-600G-F | |
| Heating temperature | RT-300℃ | RT-500℃ |
| Power | 10 KW | 16 KW |
| Pressure range | 0.01-60T | |
| Pressure Accuracy | 0.01 Ton | |
| Metal button | Silver-plated contacted , with a service life of over 100,000 times. | |
| Safety protection cover | Acrylic protective door (automatic power-off when opened) + emergency stop button, dual protection for safer operation. | |
| Curved graph pattern | It can display the operation curve graph for each time and supports downloading Excel files via USB drive. | |
| Pressure control | Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently. | |
| Water cooling | Support manual activation of the water cooling method for cooling, and automatic rapid cooling can be also achieved in multiple program segments.(water chiller is optional) | |
| Speed Regulation | The boosting speed can be adjusted, and the heating speed cab be regulated. | |
| Romote control | A computer needs to be selected and equipped, it can perform functionns such as data analysis, comparison, modification and export. | |
| Display Screen | 7” Touch Screen | |
| Heating method | Multi-stage Heating or Cooling Program | |
| Heating insulation method | Imported Heating insulation board | |
| Cooling method | Air / Water cooling(water chiller is optional) | |
| Heating area | Double platens heating 500×500mm (M×N) | |
| Working space | 520×100mm | |

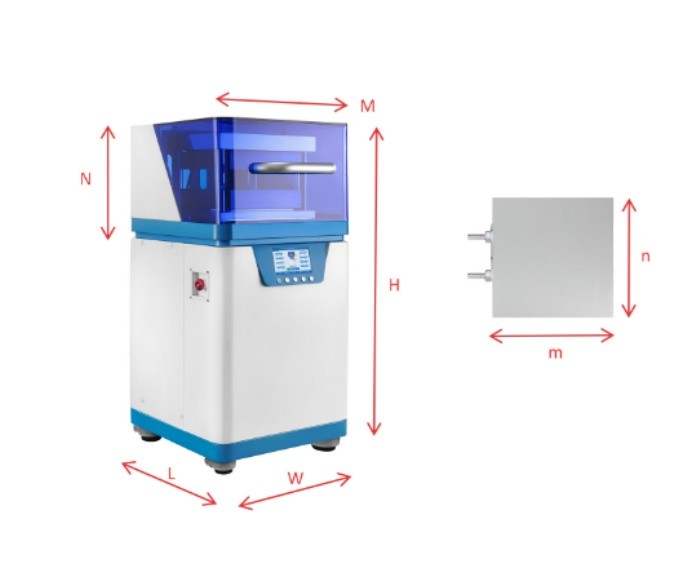

| Dimension | Machine:680×680×1280mm (L×W×H)Net weight: 1800KgPacking Size:900×800×1400mm (L×W×H)Gross weight :1920Kg | |

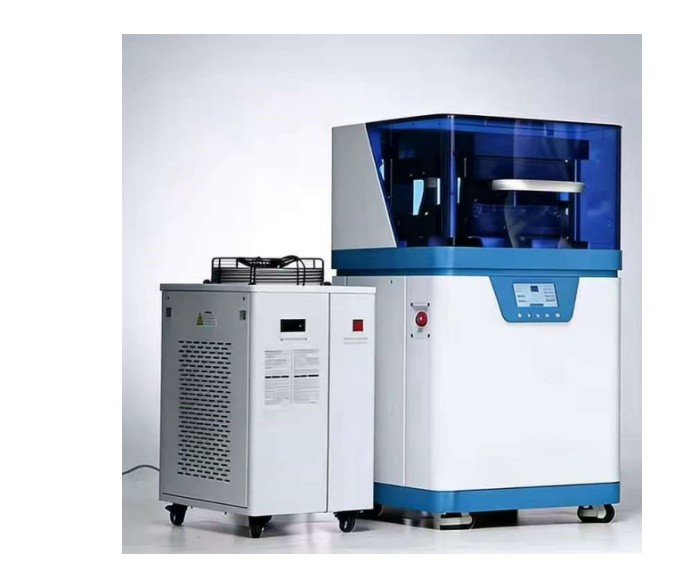

| Water chiller | Dimension : 550×340×430mm Net weight : 25kg | |
| Voltage | 220V | |
