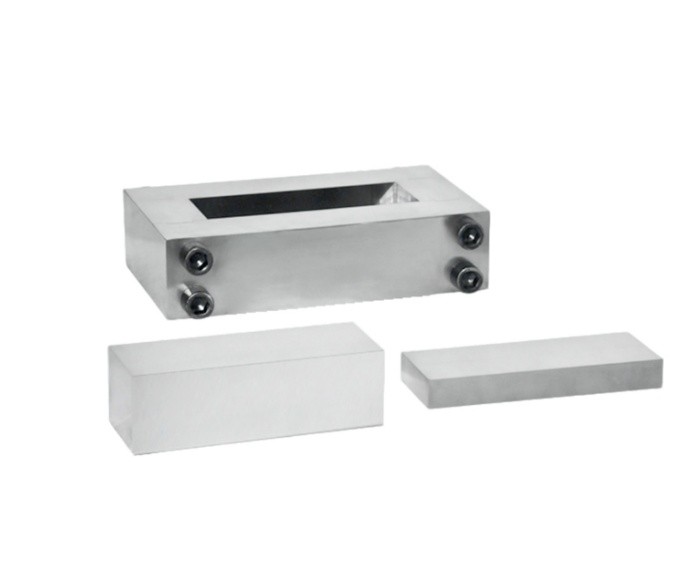

PMF-PB hydraulic square mold is a precision-engineered laboratory tool designed for preparing rectangular and square-shaped pellets from powdered materials. This rectangular press die is ideal for applications requiring non-circular sample geometries material research, and quality control testing. With sample sizes ranging from 151mm*151mm to 200mm*200mm and a generous 60mm cavity depth, the PMF-PB accommodates a variety of sample volumes while ensuring consistent, high-quality pellet formation.
Materials science – Studying ceramics, polymers, composites, and other solid materials.
Battery material research – Pelletizing electrode materials for performance testing.
Geological and mining samples – Pressing rock powders or soils for mineral analysis.
Chemical industry – Testing catalysts, pigments, and other fine chemicals.
Food and agriculture – Sample preparation for nutritional or contamination analysis.
Academic laboratories – Teaching and experimental sample preparation.
| Model No. | PMF-PB |
| Die material | Alloy tool steel:Cr12MoV |
| Hardness | HRC60-HRC62 |
| Sample Size | 151mm*151mm ,152mm*152mm,153mm*153mm,154mm*154mm,155mm*155mm,156mm*156mm,157mm*157mm,158mm*158mm,159mm*159mm,160mm*160mm,161mm*161mm,162mm*162mm,163mm*163mm,164mm*164mm,165mm*165mm,166mm*166mm,167mm*167mm,168mm*168mm,169mm*169mm,170mm*170mm,171mm*171mm,172mm*172mm,173mm*173mm,174mm*174mm,175mm*175mm,176mm*176mm,177mm*177mm 178mm*178mm,179mm*179mm,180mm*180mm,181mm*181mm,182mm*182mm,183mm*183mm,184mm*184mm,185mm*185mm,186mm*186mm,187mm*187mm,188mm*188mm,189mm*189mm,190mm*190mm,191mm*191mm,192mm*192mm,193mm*193mm,194mm*194mm,195mm*195mm,196mm*196mm,197mm*197mm,198mm*198mm,199mm*199mm,200mm*200mm |
| Cavity Depth | 60mm |
| Dimension | Φ200*160mm |
| Gross weight | 28kg |
