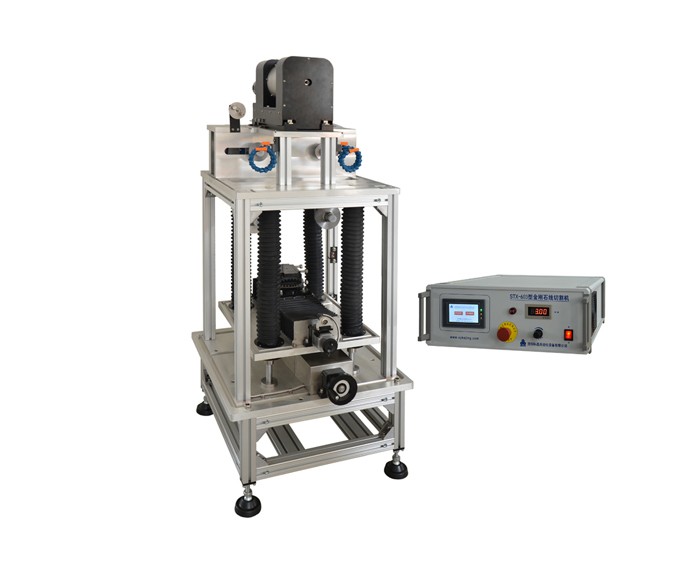

The STX-603 precision reciprocating type diamond wire saw uses diamond impregnated wire (0.3mm dia.) for cutting all kinds of materials (especially for larger size crystals, such as Si, Ge, and GaAs, etc. with boule diameter up to 6" (150 mm) and leaves a smooth cutting surface. Y and Z axis and the rotary sample stage are all driven by the stepper motors which provide the precise, stable and varied cutting of the samples. The cutting program can be set in the touch screen controller which includes the feeding speed, cutting depth, width, slice number, etc.
| Power supply | AC 220V 50Hz |
| Cutting Speed |
|
| Wire Moving Speed | 0 ~3 m/s |
| Controller | Digital 6" color touch screen |
| Diamond wire | Ø 0.35mm x 80m Length |
| Z and Y-Axis Max. Traveling distance | 160mm (±0.01mm accuracy) |
| Sample size | Max. 160mm x 160mm |
| Wire Tension System | Built-in pneumatic valves can easily adjust the tension of cutting wire |
| Dimensions | Saw: 700mm x 620mm x 1500mm (L x W x H) Controller: 490mm x 400mm x 170mm (L x W x H) |
