  • CHY-600CG Laboratory 500 degree Double Plate Hot Press
  • CHY-600CG Laboratory 500 degree Double Plate Hot Press

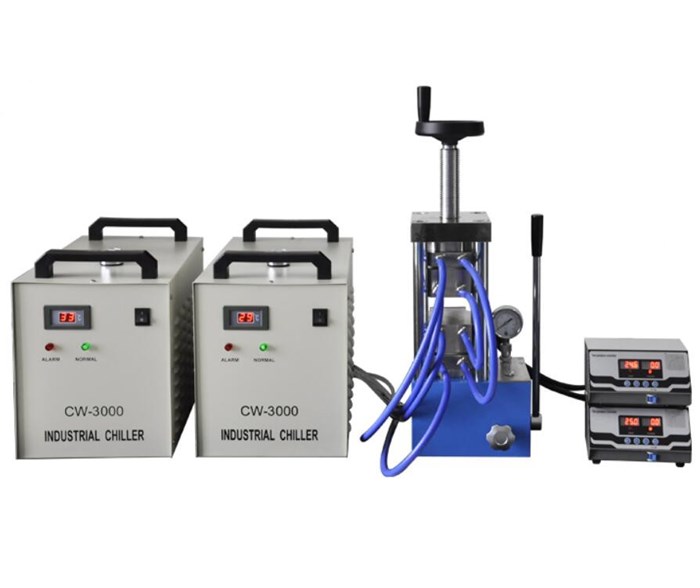

CHY-600CG Laboratory 500 degree Double Plate Hot Press

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name24 Ton Laboratory Double Heating Press
TypeCHY-600CG
Pressure range0-24T(0-34MPa)
Piston diameterChrome plated cylinder 95mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Heating rangeRm~500℃
Temperature accuracy0.1℃
Cooling methodWater cooling
Heating Plate Sizedouble heating plate 100*100mm
Machine dimension245*175*500mm
Power SupplyAC220V  1000W
Gross Weight58Kg

Pressure Conversion

Real PressureSystem PressurePressure Gauge
1Ton1.41MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
2Ton2.82MPa
3Ton4.23MPa
5Ton7.06MPa
8Ton11.3MPa
10Ton14.1MPa
15Ton21.2MPa
20Ton28.3MPa
24Ton34MPa
