  • 3-in-1 Sealer for Top/Side & Final Vacuum Standing & Sealing for Pouch Cell

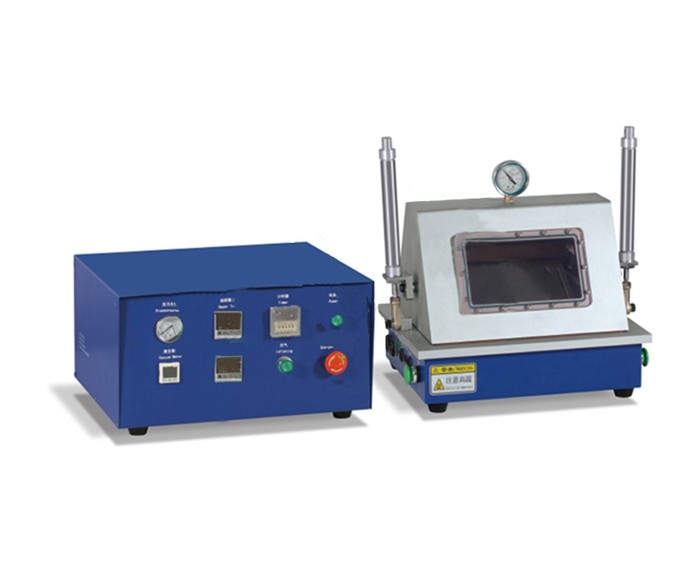

3-in-1 Sealer for Top/Side & Final Vacuum Standing & Sealing for Pouch Cell

Sealer Head temperature:Rm~250℃,adjustable

Temperature accuracy:±2℃

Sealing pressure:0~7Kg/cm2,adjustable

Sealing time:0~99second, adjustable


Share:
Application

The CHY-YF200 vacuum pre sealer is is mainly suitable for vacuuming and hot pressing pre packaging of soft packaged lithium batteries after liquid injection and standing; This machine automatically completes the vacuum thermal packaging of the aluminum plastic shell of the battery by accurately controlling the main vacuum extraction box and pneumatic thermal sealing components.

Product parameters
Vacuum Sealer CHY-YF200
Vacuum Degree-95Kpa (vacuum pump do not include)
Sealer Head temperatureRm~250℃,adjustable
Temperature accuracy±2℃
Sealing pressure0~7Kg/cm2,adjustable
Sealing time0~99second, adjustable
Sealing width5±0.4mm, or as request
Sealing range200mm
Battery size rangeL200mm, W160mm
Sealing Thickness range60~300um
Thickness sealing accuracydifference<15um
Air consumption0.2LCompressed gas/time
Power supply220V/50Hz,rated power 0.6KW
