Its compact design allows it to be easily transferred through a standard glove box transition chamber (diameter > 230mm), making it an indispensable tool for universities, laboratories, and small-scale production lines requiring moisture-free environments

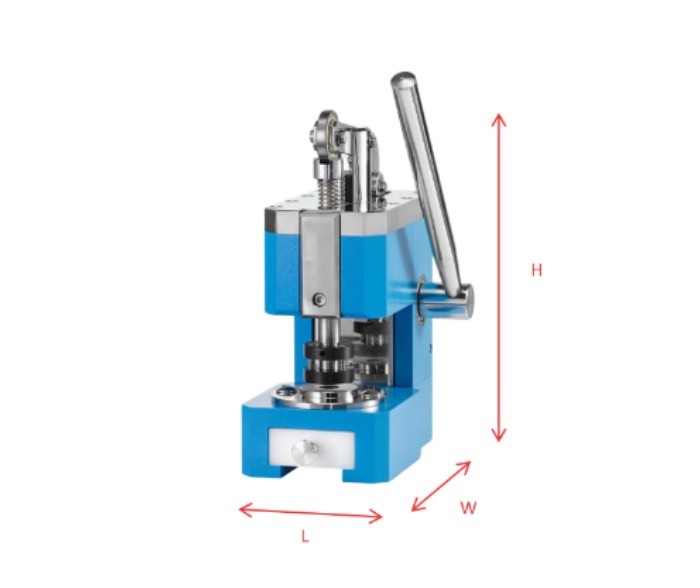

Precision manual disc cutter specifically designed for the battery research and development sector. It is widely used for punching round discs of lithium battery electrodes, separator films, and other foil materials used in coin cell and split test cell assembly . Developed with patented technology (Patent No. 201220296271.2), this cutter ensures clean cuts with minimal burrs and no indentation marks, guaranteeing the integrity of your research samples
| Model | PT-10 |
| Mold Material | 3C-13 (Stainless steel quenching) |
| Punching Pressure | Maximum 200 kg |
| Punch Stroke | Maximum 16 mm |
| Materials that can be punched | C.01 ~ 0.5 mm thick sheet |
| Workbench Surface | 120 × 120 mm |
| Punching Die | Diameter Φ3 ~ Φ24 mm |
| Standard-Equipped Die | Φ14 mm and Φ16 mm |
| Material Collection Box | Antistatic ABS material |
| Product Dimensions / Weight | 140 × 200 × 400 mm (L × W × H) / 12 kg |
| Package Dimensions / Gross Weight | 405 × 330 × 550 mm (L × W × H) / 19 kg |
