*The roller has high hardness, and its surface is plated with hard chromium, with hardness up to HRC62 and abrasion and corrosion resistance.
*The inclined block is used to adjust the pressing gap, which has good self locking performance and high adjustment accuracy.
*High rolling accuracy, roller cylindricity ≤ ± 2um
*Vertical design facilitates the feeding and rolling of sheet and strip materials.
*Gear meshing rotation is adopted to achieve roller pressing.
*The pressing thickness and speed are adjustable, and the appearance is exquisite and beautiful.
*Electric rolling, forming automation, positive and reverse operation.
*Small size, easy to operate, flexible and fast to use.

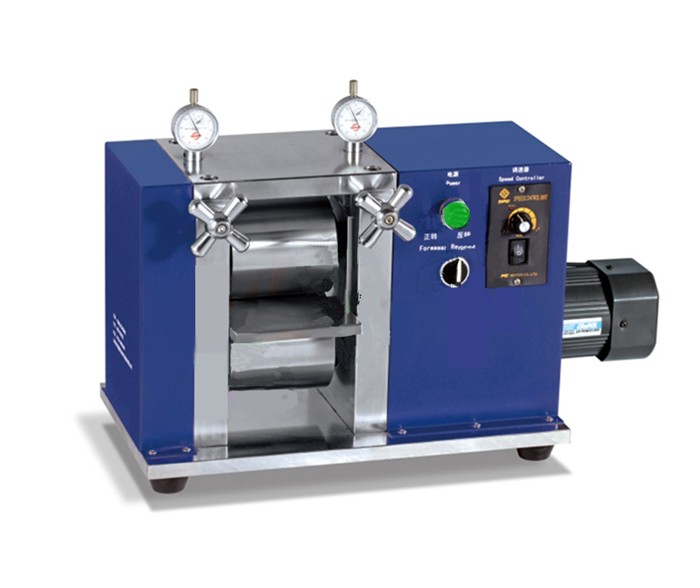

CHY-DG100L is a compact Hot Rolling Cylinder Press with max. the working temperature of 100°C, which is designed for preparing battery electrodes for both inside or outside a glove box. The high torque DC motor is Ar gas compatible.
| Model No. | CHY-DG100L | |
| Roller Diameter | Φ96mmX100mm | |
| Cylindricity of roller | ≤± 2um | |
| Roller hardness | HRC62 | |
| Rolling thickness | 0~2mm, gap adjustable | |
| Roll placement | vertical placement | |
| Tablet thickness | adjustable speed | |
| Power supply | AC220V/50Hz, power 120W | |
| Feeding speed | 0~40mm/s | |
| Dimension | L385mm * W240mm * H355mm | |
