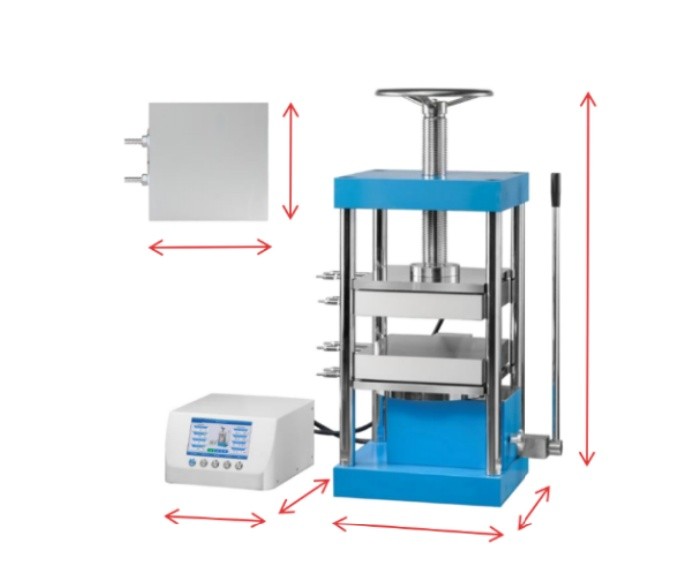

This 40T Manual Dual-Plate Hot Press combines a robust 40-ton hydraulic system with independently controlled dual heating platens measuring 400×400mm. Designed for laboratories and small-batch production, it offers maximum temperature options of 300℃, 500℃, or to cover a broad spectrum of materials, from standard thermoplastics to advanced high-temperature composites and ceramics. Its all-in-one structural design eliminates external hydraulic connections, reducing potential leak points while maintaining a compact footprint suitable for benchtop use.
This 60-ton manual dual-plate hot press is an essential tool for laboratories, R&D centers, and small-scale production across multiple industries:
Polymer & Plastics Research: Compression molding of thermoplastics and thermosets including PP, PE, PS, PEEK, PTFE, and polyimide films and sheets for mechanical testing, thermal analysis, and quality control.
Composite Material Development: Hot pressing of fiber-reinforced polymer laminates (carbon fiber, glass fiber), multi-layer functional films, and sandwich structures for aerospace and automotive R&D.
Ceramic & Powder Metallurgy: Low-temperature sintering and densification of advanced ceramics, metal matrix composites, and powder compacts; suitable for LTCC (Low-Temperature Co-fired Ceramics) processing.
Battery & Energy Materials: Preparation of solid-state battery electrolyte membranes, lithium battery electrode sheets, fuel cell MEA (Membrane Electrode Assembly) hot pressing, and supercapacitor electrode fabrication-1.
Pharmaceutical & Biomedical: Hot forming of transdermal patches, oral thin films (OTF), bio-degradable polymer sheets, and medical device components.
Electronics & Functional Materials: Compression molding of conductive polymer films, thermal interface materials, flexible printed circuit substrates, and sensor elements.
Adhesive & Coating Testing: Producing uniform hot-melt adhesive layers and coating films for peel strength, shear testing, and rheological characterization.
Spectroscopy Sample Preparation: Creating homogeneous thin films and flat solid samples for FTIR (Fourier Transform Infrared) and XRF (X-ray Fluorescence) analysis.
| Model | PCH-600F | |
| Heating temperature | RT-300℃ | RT-500℃ |
| Power | 3 KW | 5 KW |
| Pressure range | 0-40T | |
| Pressure Accuracy | 0.01 Ton | |
| Temperature Control accuracy | 0.1℃ | |
| Piston diameter | Chrome-plated oil cylinder Φ130mm(d) | |
| Integral structure | No sealing connection, oil leakage reduced | |
| Constant Temperature Time | ≥1S | |
| Display Screen | 7” Touch Screen | |
| Heating method | Multi-stage Heating or Cooling Program | |
| Heating insulation method | Imported Heating insulation board | |
| Cooling method | Air / Water cooling(water chiller is optional) | |
| Heating area | Double platens heating 400×400mm (M×N) | |
| Working space | 400×220mm | |
| Controlling part | Dimension: 490×395×235mm (L×W×H)Net weight: 9.5KgGross weight :26.5 Kg | |
| Pressing part dimension | 900×700×1000mm (K×P×H)Net weight :580KgGross weight: 632Kg | |
| Water chiller | Dimension : 550×340×430mm Net weight : 11kg | |
| Voltage | 220V / 380V | |
