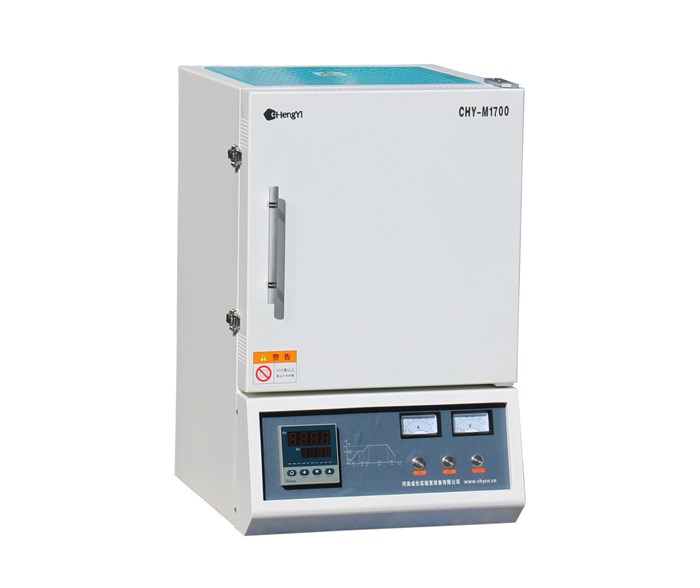

CHY-M1722 High Temperature 1700 degree 12.5L Muffe Furnace

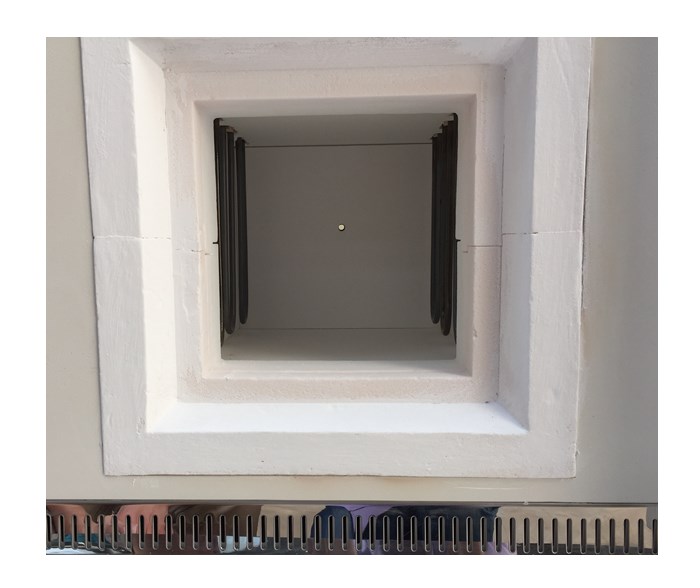

1.220*220*260mm chamber dimension

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi

Share:
Application

1.Laboratory heat thermal processing cement, building materials industry etc

2.Pharmaceutical medicines inspection, preteatment of medical sample

3.Analytical Chemistry Industry: water analysis and environmental analysis

4.Analysis of coal quality,determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis


Product parameters
ModelCHY-M1722
Furnace Doorside open type
Display ModelHighlight LED display
Maximum Temperature1650℃
Working Temperature≤1650℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Hearth dimensions220mm×220mm×260mm
Hearth volume12.5L
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorB-type thermocouple
Heating ElementMoSi2 Heating Rod
Hearth Materialhigh purity alumina fiber
After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power4.5kw
Overall dimensions560×650×830 (mm )
Packing3-ply wooden case
Accessories

Plate,Protective Glove,Crucible Tong,Crucible,Door Block,Heating Element

,Temperature Sensor,User Manual.
