CHY-M1516 High Temperature 1500 degree 4.1L Box Furnace

1.160*160*160mm chamber dimension

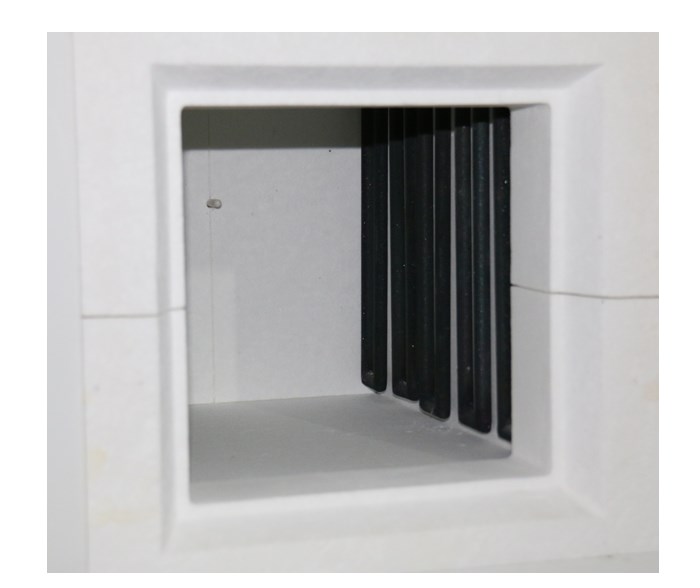

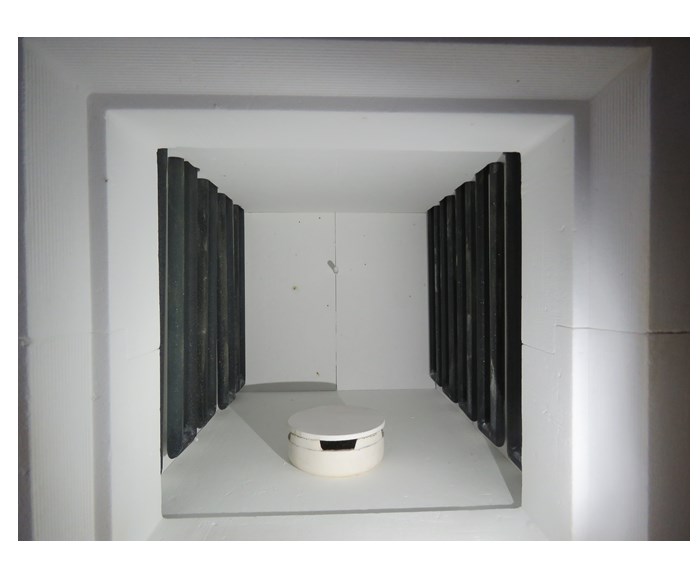

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


1.Laboratory heat thermal processing cement, building materials industry etc

2.Pharmaceutical medicines inspection, preteatment of medical sample

3.Analytical Chemistry Industry: water analysis and environmental analysis

4.Analysis of coal quality,determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis

Product parameters

Safety Operation Regulations of High Temperature Muffle Furnace

1. The horse boiling furnace should be placed on a solid concrete table, and flammable and explosive products should not be stored around it.

Second, the horse boiling furnace must have a special electric gate control power supply, and the cable specifications used must meet the working current requirements of the equipment.

3. Burning organic matter, pre-ashing, and then burning in the furnace.

4. After use, the power must be cut off first, and the door can only be opened after the temperature drops below 100℃.

5. There should be enough fire-fighting equipment in the working room.

Furnace Doorside open type
Display ModelHighlight LED display
Maximum Temperature1350℃
Working Temperature≤1350℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Hearth dimensions160mm×160mm×160mm
Hearth volume4.1L
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorS-type thermocouple
Heating ElementSiC Heating Rod
Hearth Materialhigh purity alumina fiber
After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power3.0kw
Overall dimensions460×530×730 (mm )
