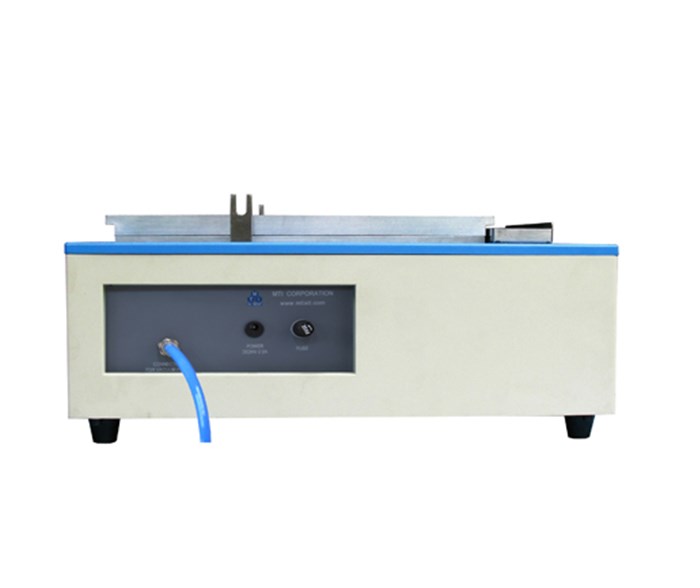

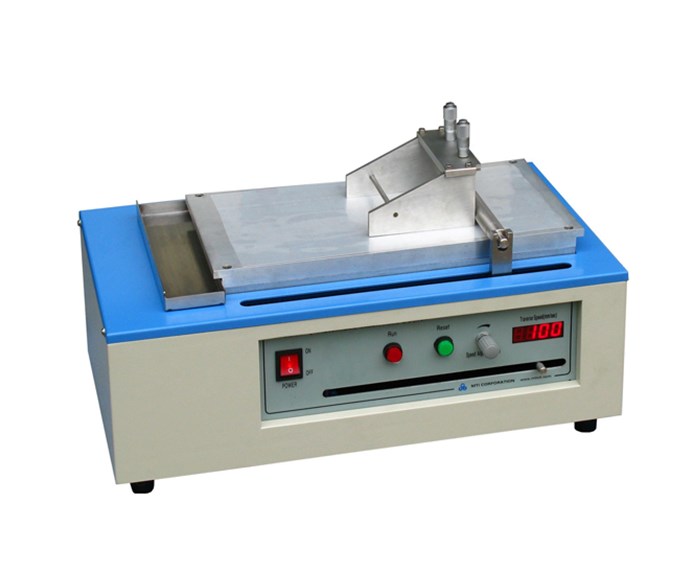

Compact Tape Casting Coater w/ Vacuum Chuck (8"Wx14"L), Film Applicator

Share:
Application

MSK-AFA-I is a CE Certified compact tape casting coater designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place,  One 100 mm width
adjustable micrometer applicator (doctor-blade).

This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating.

Product parameters
Voltage and Power220VAC 1.2KW, 100ºC
Working Power of CoaterPower adaptor: Input 100-240VAC, Output 24VDC
Traverse Speed5 - 100 mm/sec variable.Accuracy: 10mm/sec
Stroke Length10 - 250 mm adjustable by using Adjustable Position Switch
Vacuum chuck

Vacuum chuck made of Aluminum alloy with < 1 mm holes

Vacuum Chuck Dimensions:250mm(L)*200mm(W)

Vacuum Pump120L/min Oilless Vacuum Pump
Film Applicator
  • One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm)

  • Travel Pusher and waste plate are included for pushing the Film Applicator

Note:  Thinnest film can be achieved is > 10 microns

ComplianceCE certified
Product Dimensions550mm(L) x  330mm(W)  x 150mm(H)
WarrantyOne Year limited warranty with lifetime support
Net Weight46kg
