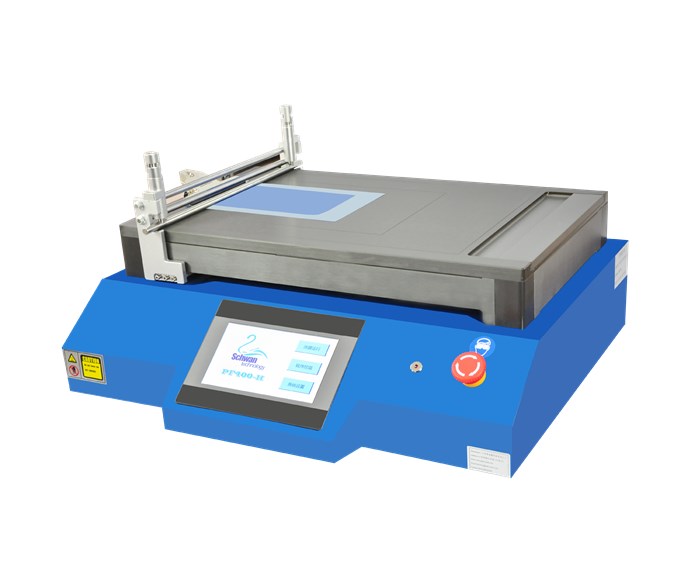

Automatic Coating Machine with Bottom Heating Bed and Vacuum PF400-H

Share:
Application

PF400-H is a compact tape casting coater with a bottom heating bed designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place.

Product parameters
Film speed1-300mm/s, speed regulation accuracy: 1mm/s
Maximum stroke length420mm
Vacuum suction areaA4/A3 area optional
Vacuum panel size345mm*540mm
Heating power2.5KW, 12A, thermal uniformity <±1% (PF400-H)
Heating temperatureroom temperature -200 °CC, temperature control
accuracy±0.5C (PF400-H)
Shape ruler630mm (W) * 550mm (D) 324mm (H)
