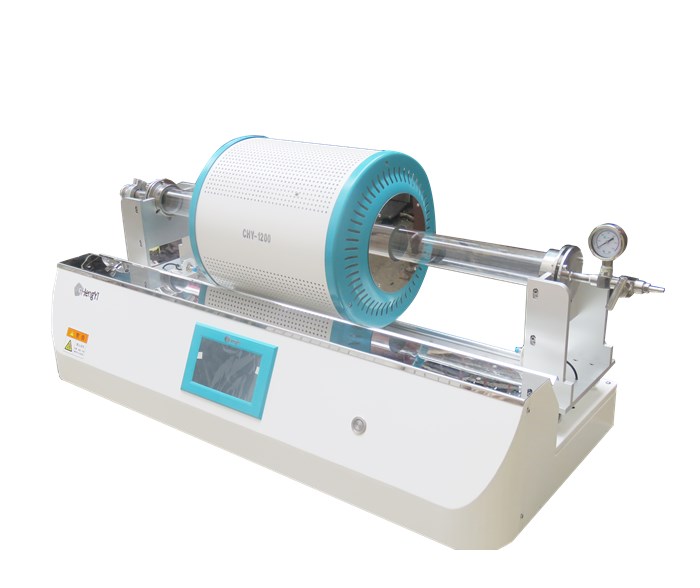

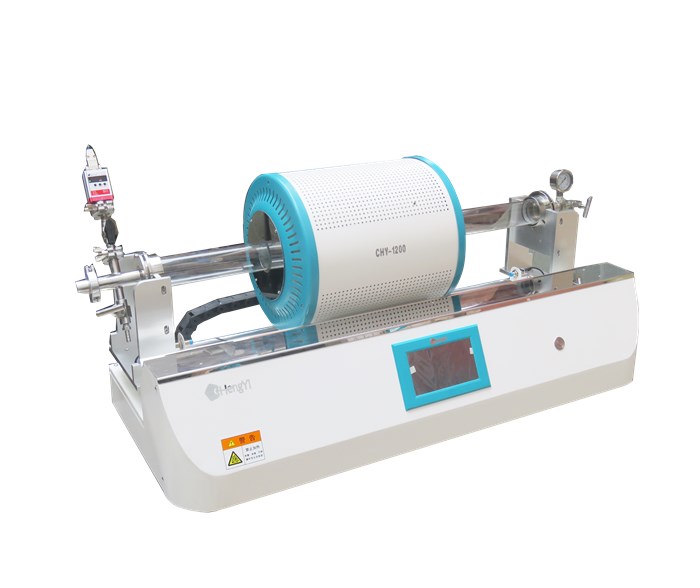

CHY-CMT1260 1200 Degree Fast Sintering CMT Tube Furnace with O.D60mm Quartz Tube

1.O.D60*1000 high purity quartz tube

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.

5.Fast Heating/Cooling Sintering


Product parameters
Product Name1200 Degree CMT Tube Furnace
ModelCMT1260
Furnace TypeFast Heating/Cooling Sintering
Display ModelLCD Touch Panel
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/Second
Heating zonesSingle heating zone
Quartz Tube DiameterO.D60*1000mm
Inner DiameterI.D 54*1000mm
Heating Zone Length 220mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz
After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power12kw
Overall dimensions1120×640×520 (mm )
Packing3-ply wooden case
AccessoriesProtective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual.
