  • CHY-R12100A 1200 Degree Rotary Tube Furnace with 360 rotating degree
  • CHY-R12100A 1200 Degree Rotary Tube Furnace with 360 rotating degree

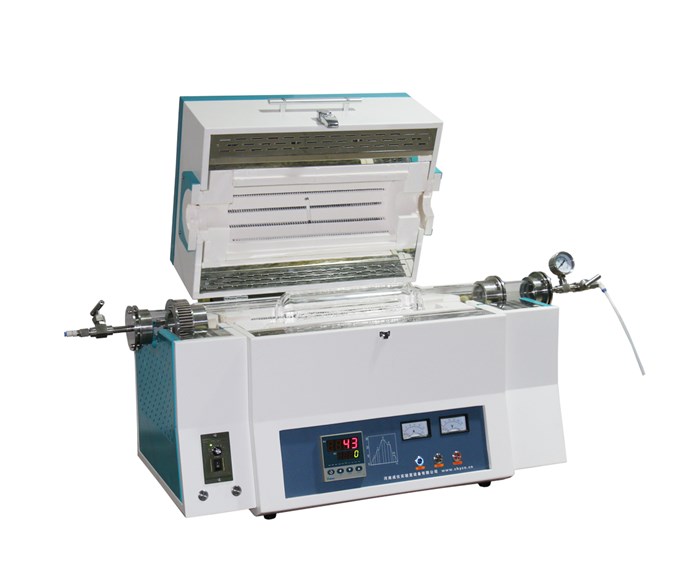

CHY-R12100A 1200 Degree Rotary Tube Furnace with 360 rotating degree

1.O.D100*1000 high purity quartz tube

2.high quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.


Product parameters
Product NameRotary Tube Furnace
ModelR12100A
Furnace TypeRotary Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube Diameter

Heating zone:O.D100*360mm

Dual Head:O.D60*640mm

CHY-R12100A 1200 Degree Rotary Tube Furnace with 360 rotating degree

Inner DiameterI.D 94*1000mm
Heating Zone Length 440mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz
After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power3.5kw
Overall dimensions890×470×610 (mm )
Packing3-ply wooden case
AccessoriesProtective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual.
