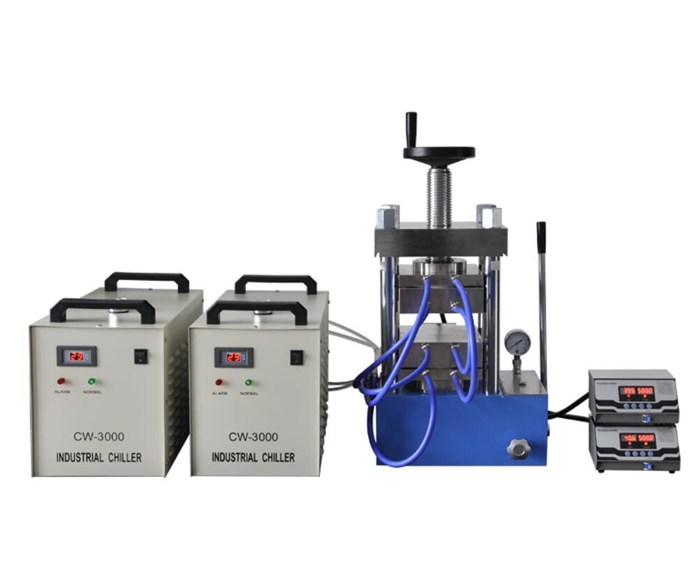

CHY-600DG Laboratory 60 Ton 500 degree Double Plate Hot Press

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name60 Ton Laboratory Double Heating Press
TypeCHY-600DG
Pressure range0-60T(0-33MPa)
Piston diameterChrome plated cylinder 150mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Heating rangeRm~500℃
Temperature accuracy0.1℃
Cooling methodWater cooling

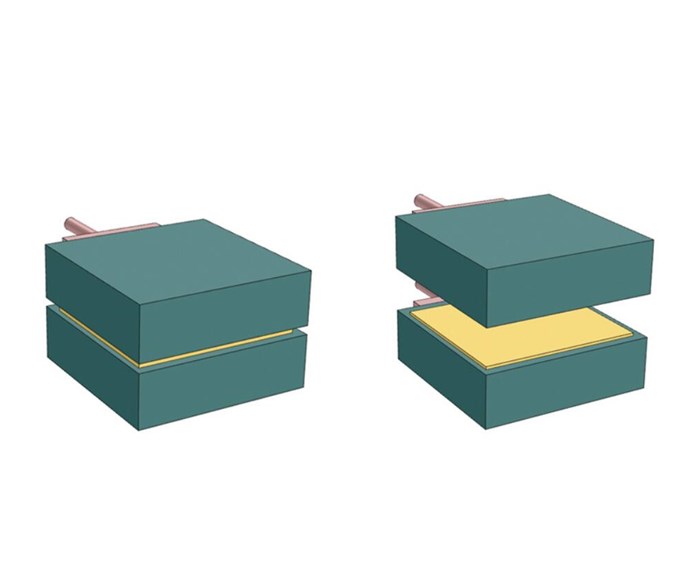

Heating Plate Sizedouble heating plate 180*180mm
Machine dimension405*260*525mm
Power SupplyAC220V  2000W
Gross Weight200Kg

Pressure Conversion

Real PressureSystem PressurePressure Gauge
1Ton1.41MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
3Ton2.82MPa
5Ton4.23MPa
10Ton7.06MPa
20Ton11.3MPa
30Ton14.1MPa
40Ton21.2MPa
50Ton28.3MPa
60Ton34MPa
