Maxi temperature 1200 degree
Vacuum degree -97KPa

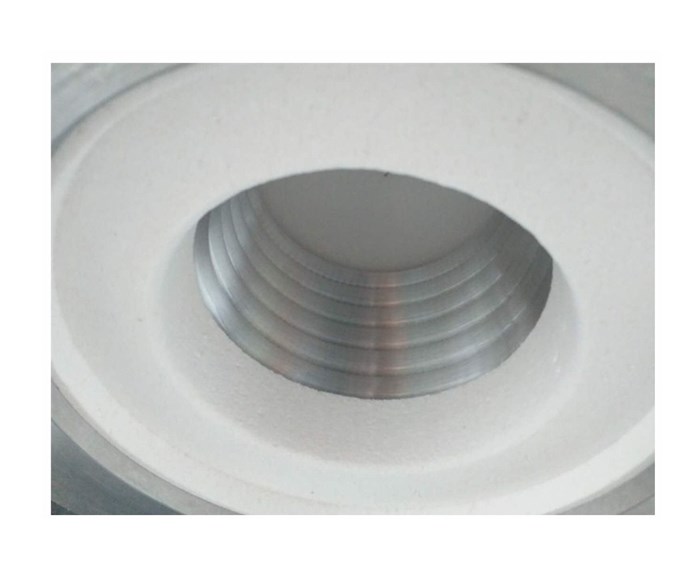

Chamber diameter:O.D110mm
Made by Henan Chengyi
1. 200 Program Memory Expanded memory and faster logic board allows the user to use a multitude of porcelains
2. Larger Easy Read LCD Screen provides four lines of 20 characters
3. Membrane Keys for keypad durability and less wear
4. Detent Knob with Built-In Select Switch allows for faster and more convenient programming
5. Improved Muffle More insulation than previous Pro Series to save energy and costs.
6. Upgraded Thermocouple for unsurpassed accuracy
| Model | CHY-B1210 |

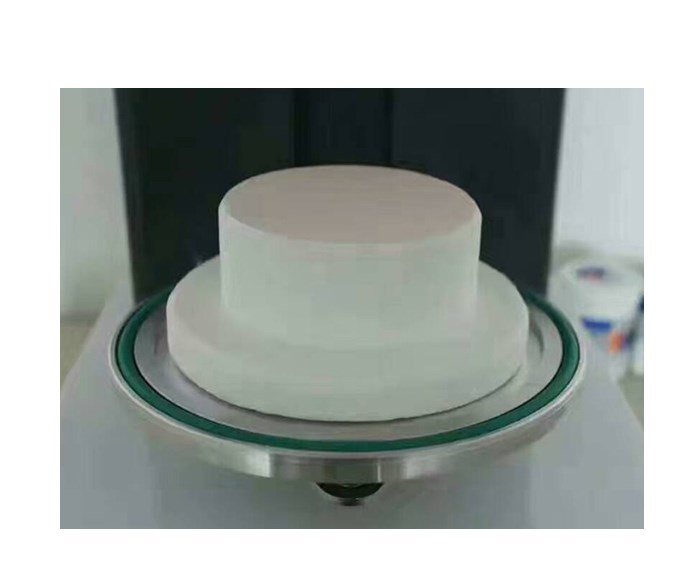

| Chamber | Auto lifting |
| Display model | Touch screen |
| Max. temperature | 1200℃(2283°F) |
| Working temperature | ≤1150℃ |
| Heating rate | 200℃/min max. (392°F /minute) |
| Vacuum level | 1-101% |
| Usable measure (firing chamber) | 9cm(3.5”) |
| WXDXH | width 27cm Depth 36cm Height 53cm |
| Weight include the package | 30Kg |
| Net weight | 21Kg |
| Power | max 1500w |
| Electric current | 14.5ampere@110V7.0ampere@230V |
| Operation range | 100-120V 50/60HZ 230V 50/60HZ |
| Thermocouple | K type |
| Heating element | Fe-Cr-Al-Mo wire (OCr27Al7Mo2) |
| Ambient temperature | 2°C to 40°C |
| Maximum altitude | 1500 m (Special Model:3500m) |
| Chamber material | Alumina fiber |
| Certificate | CE |
| After sale service | 12 months |
| Package | Fumigation free Wooden case |
| Device | • 1 furnace • 1 firing pan • 1 connection cable for the mains power supply • 1 furnace tweezers • 1 Repair kit package |
