  • CHY-T1750A 1700 degree High Temperature Tube Furnace
  • CHY-T1750A 1700 degree High Temperature Tube Furnace
  • CHY-T1750A 1700 degree High Temperature Tube Furnace

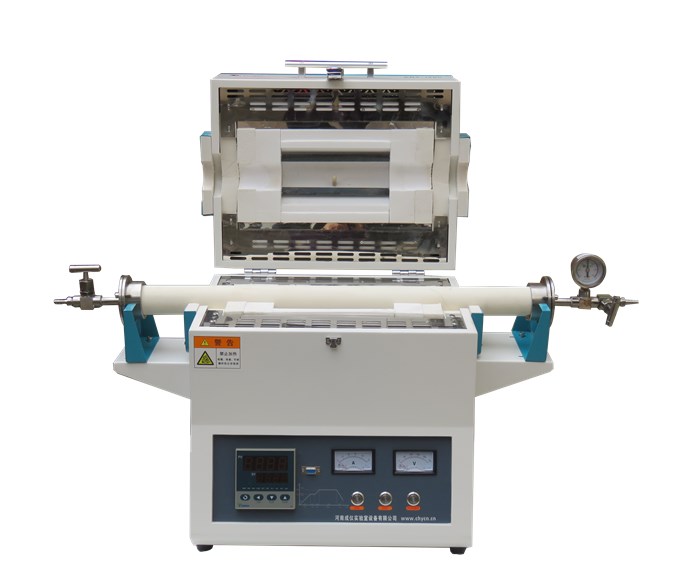

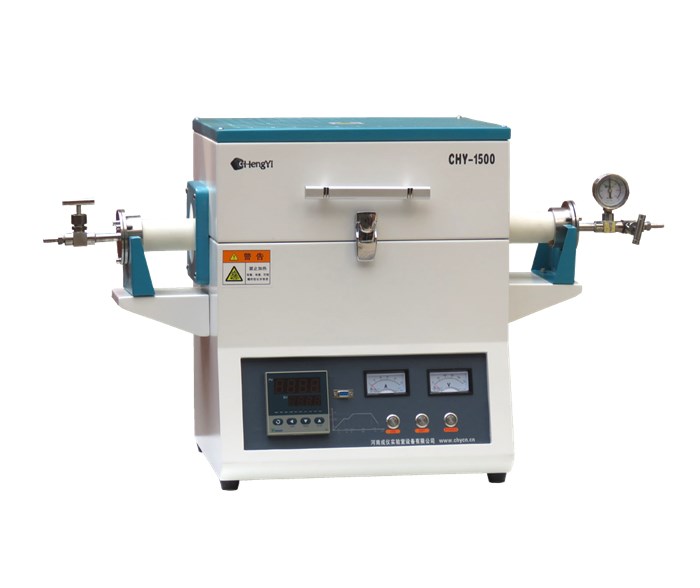

CHY-T1750A 1700 degree High Temperature Tube Furnace

1.O.D50*1000 high purity Corundum Tube

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.


Product parameters
Product Name1700 Degree Tube Furnace
ModelT1750A
Furnace DoorOpen Type Furnace
Display ModelHighlight LED display
Maximum Temperature1650℃
Working Temperature≤1650℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D50*1000mm
Inner DiameterI.D40*1000mm
Heating Zone Length 300mm
Constant Heating Zone150mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorB-type thermocouple
Heating ElementMoSi2 Rod
Quartz Tube MaterialHigh Purity Corundum Tube
After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power4.5kw
Overall dimensions700×510×720 (mm )
Packing3-ply wooden case
Accessories

Protective Glove,Crucible Tong,Crucible,Corundum Tube,

Vacuum Flange,User Manual.
